285389

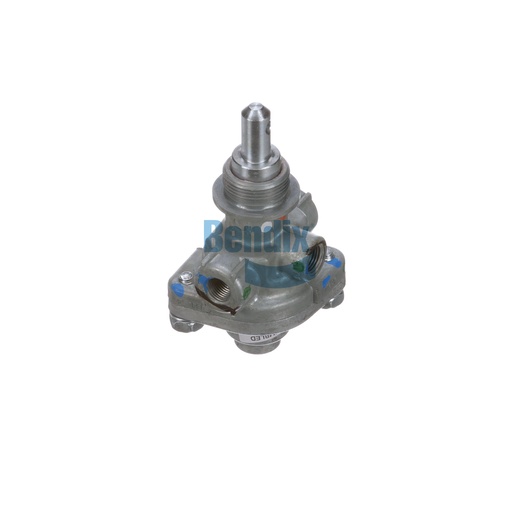

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a vital component for trailer braking systems, designed to provide precise control over air distribution. Weighing just 0.3 kg (0.64 lb) and manufactured in Mexico, this valve is built for durability and effective operation under varying conditions. Featuring a compact design, it is engineered to ensure reliable performance, preventing air loss and maintaining consistent pressure within the braking system. This valve is an essential part for enhancing the safety and responsiveness of your trailer brakes, ensuring that they engage promptly when needed. By choosing Bendix OEM parts, you are ensuring quality and reliability for your commercial vehicle. Source One Parts Center is the premier destination for these components, providing exceptional products and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.66 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
104.4 mm (4.11 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.64 lb
