$174.95
$209.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

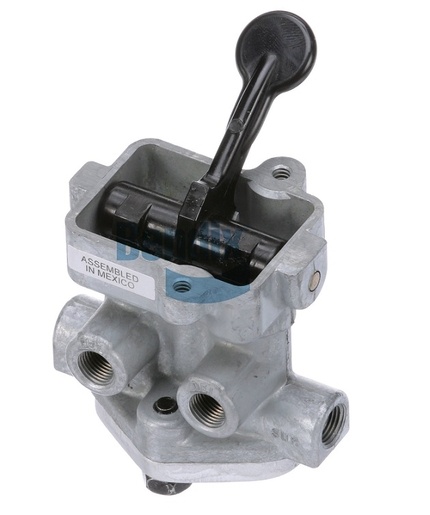

The Bendix Control Valve is an essential element in the braking system of your commercial vehicle, offering precision control over air distribution for effective braking action. This valve is designed with a 3-position mechanism, allowing for seamless transitions between different operational modes, which enhances the vehicle's braking efficiency. With a robust construction that can withstand extreme temperatures from -40 °F to 200 °F, this control valve ensures reliable performance in all conditions. Its compact design allows for easy installation, making it a preferred choice for technicians. For sourcing the highest quality parts for your truck, Source One Parts Center is the best destination for genuine Bendix OEM products, ensuring your vehicle's braking system operates safely and efficiently.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 1
1/8-27 NPT
Supply Port 2
1/8-27 NPT
Total Travel
100°
Height
114.6 mm (4.51 in)
Maximum Operating Temperature
200 °F (93 °C)
Product Type
3-Position Valve
Length
54.1 mm (2.13 in)
Width
69.1 mm (2.72 in)
Harmonized System (HS) Code
848120
Actuator Finish
Black
Supply Port 3
Closed Port
Supply Port 4
Closed Port
Lever Position 3
DEL 1 / EXH 2
Lever Position 1
EXH 1 / DEL 2
Lever Position 2
EXH 1 / EXH 2
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.75 lb
