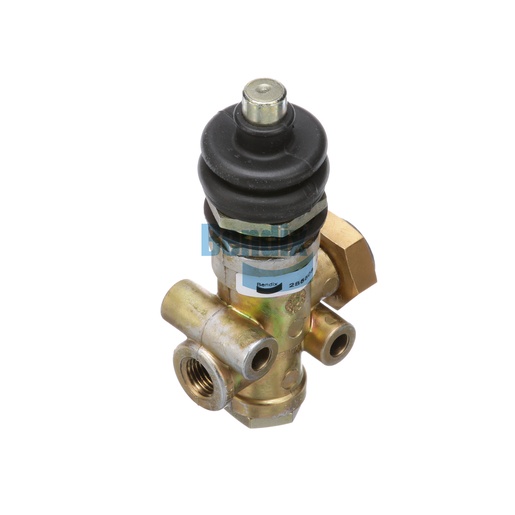

285508
Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is a vital component for ensuring your commercial vehicle's brake system operates smoothly and efficiently. This high-performance valve is designed for easy installation and features a compact design that allows for flexible mounting options. Made from durable materials, it provides reliable performance and can withstand the rigors of heavy-duty use. The valve supports a range of operating conditions, with a maximum temperature of 200°F and a minimum of -40°F, making it suitable for various climates. Its self-return mechanism ensures that the valve operates effectively, providing consistent braking response. This Control Valve is essential for maintaining the safety and efficiency of your braking system. For purchasing genuine Bendix parts, Source One Parts Center is the best choice, ensuring you receive top-quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Total Travel
.420 IN
VMRS
013-010-198: Toggle Control Valve
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT (w/ Breather Valve)
Height
118.9 mm (4.68 in)
Product Type
2-Position Valve (Differential Lock)
Maximum Operating Temperature
200 °F (93 °C)
Width
41.9 mm (1.65 in)
Length
57.2 mm (2.25 in)
Harmonized System (HS) Code
848120
Actuator Style
Plunger
Mechanism Type
Self-Return
Actuator Material
Steel
Country of Origin
United States
Actuator Finish
Zinc-Plated
Mounting
Ø .28 IN (2x)
Weight
0.99 lb
