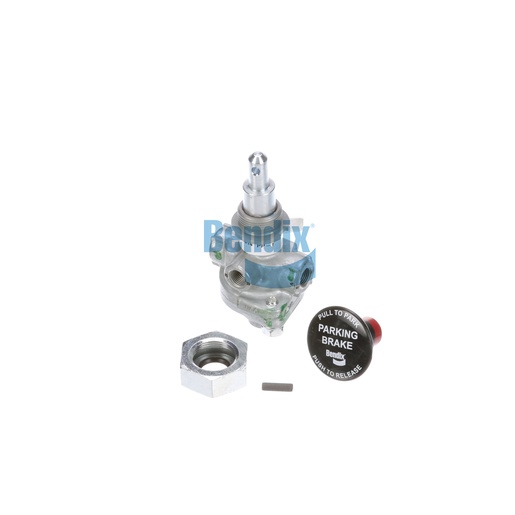

285514
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is a vital component within the braking system of commercial vehicles, providing essential control over air flow and pressure. This Bendix Inversion Valve is designed for heavy-duty applications, ensuring reliable and efficient operation. With its robust construction and innovative design, it allows for precise control, enhancing the overall performance of the braking system. The valve features multiple ports for versatile installation and compatibility with various systems, making it an ideal choice for fleet operators. Regular inspection and timely replacement of the control valve are essential for ensuring optimal braking performance and safety. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, ensuring quality and reliability for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
115.3 mm (4.54 in)
Plunger / Button Height
2.09 IN
Automatic Release Pressure
20 PSI
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Park | Parking Brake | Push to Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.75 lb
