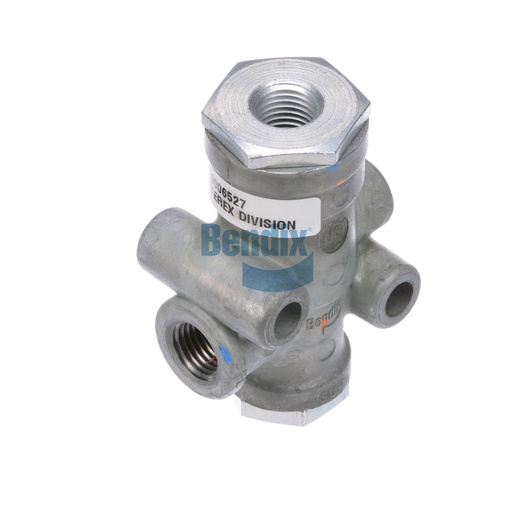

285549N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is engineered for optimal performance in air brake systems, specifically designed for trailers. This valve plays a pivotal role in regulating air flow, ensuring that braking systems function seamlessly under various conditions. Its compact design and robust construction allow for easy installation, adhering to standard flange mounts. With a maximum operating temperature of 200 °F and a minimum of -40 °F, this valve is built to withstand harsh environments while maintaining reliability. Its adjustable inlet pressure and multiple ports provide flexibility for air supply configurations, making it a versatile choice for any trailer setup. For those looking to maintain their vehicles with high-quality components, Source One Parts Center is the ultimate destination for authentic Bendix parts, offering unparalleled quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Release Supply Port
1/4-18 NPT
Emergency Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Constant Rel SUP / Variable Emerg CON)
30 PSI MAX
Width
35.1 mm (1.38 in)
Length
49.0 mm (1.93 in)
Height
73.2 mm (2.88 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Mounting
Ø .28 IN (2x)
Weight
0.57 lb
