285748N

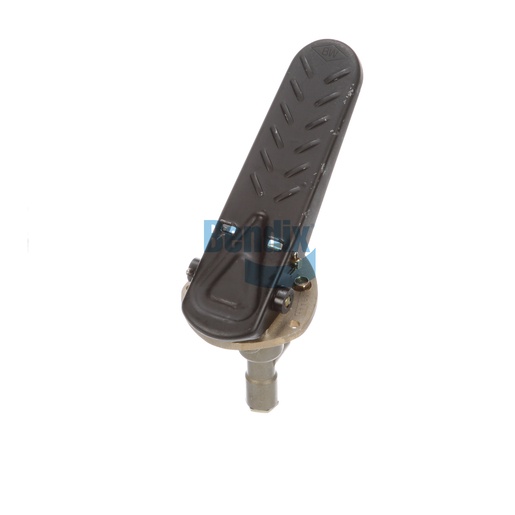

Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is a crucial element in your truck's braking system, designed to provide precise control over the air pressure that activates your brakes. This valve features a robust construction with a delivery port rated for 1/4-18 NPTF, ensuring a secure connection and reliable performance. Weighing just 1.8 kg, this valve is engineered for efficient operation, capable of withstanding temperatures between -40 °F and 200 °F. Its mechanical clutch control capability allows for smooth engagement and disengagement, enhancing the overall safety and responsiveness of your vehicle's braking system. By maintaining optimal air pressure, the Control Valve contributes to more effective braking, providing peace of mind to drivers. When it comes to sourcing genuine Bendix parts, Source One Parts Center stands out as the premier destination, offering authentic OEM components that guarantee quality and reliability for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
023-001-104: Control Valve - Air, Mechanical Clutch
Delivery Port
1/4-18 NPTF
Reservoir Port
1/4-18 NPTF
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
21°
Initial Pedal Angle
30°
Final Delivery Pressure
65 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Clutch Brake Control Valve Included
No
Country of Origin
United States
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting
Ø .34 (3x)
Weight
3.99 lb
