285833

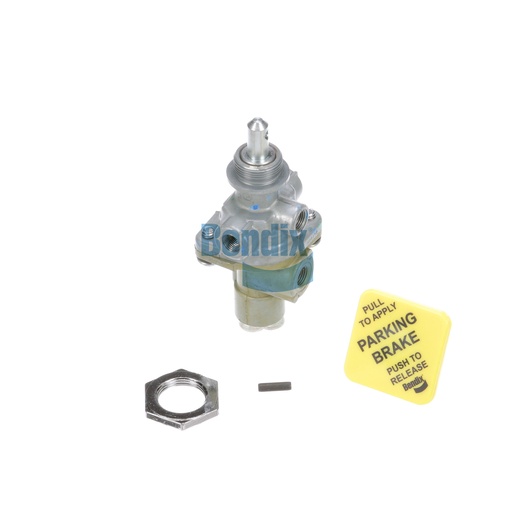

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your braking system with the Bendix Control Valve, specifically designed for trailer and inversion applications. This high-performance valve features a flipper actuator that allows for precise control of air flow, enhancing the responsiveness of your braking system. With a compact design, it simplifies installation while ensuring that it meets the rigorous demands of commercial vehicles. The control valve operates efficiently in a wide temperature range, from -40°F to 200°F, ensuring reliable performance in extreme conditions. Weighing only 0.4 kg, it combines lightweight construction with robust durability for long-lasting use. For the best in genuine Bendix OEM parts, Source One Parts Center is your trusted source, providing exceptional quality and service to support your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
111.0 mm (4.37 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
47.0 mm (1.85 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Shape
Diamond
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Apply | Parking Brake | Push to Release
Exhaust Port
Vent
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.86 lb
