285857

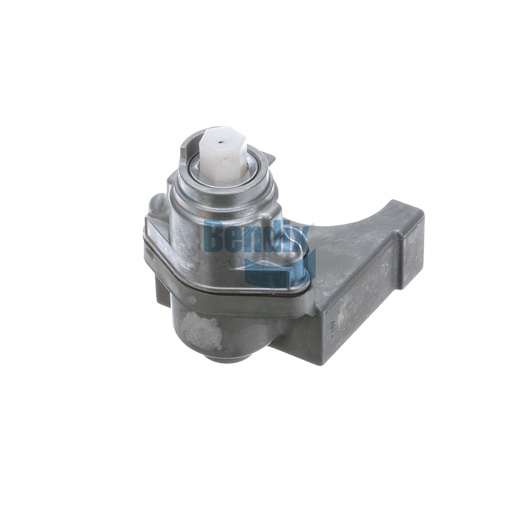

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve is a crucial component of the braking system, providing essential control over air distribution to the trailer brakes. This valve features a self-return design, which enhances safety by ensuring that the brakes engage and release smoothly. With a maximum operating temperature of 200°F, it is engineered for durability and reliable performance in demanding conditions. Its compact design allows for easy installation, making it a practical choice for fleet operators. By ensuring optimal brake performance, this valve plays a significant role in maintaining road safety. For genuine Bendix OEM parts, Source One Parts Center is your best choice, providing high-quality components that enhance vehicle performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 70 PSI
Final Delivery Pressure
70 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Product Type
Self-Return (with Detent)
Body Material
Zinc
Weight
2.23 lb
