285858

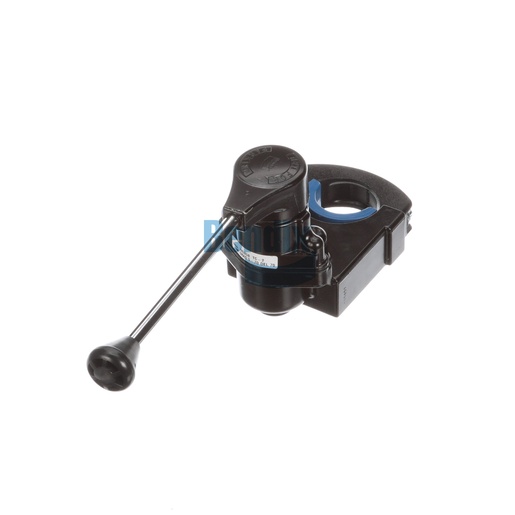

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve is a key component for managing air flow within the trailer's braking system, providing enhanced control and safety during operation. Designed with precision, this valve supports various configurations, allowing for seamless integration into existing systems. Its durable construction ensures reliable performance even in extreme conditions, making it suitable for heavy-duty applications. By upgrading to this trailer control valve, operators can achieve improved braking efficiency and responsiveness, crucial for maintaining safety on the road. For the best selection of genuine Bendix OEM parts, look to Source One Parts Center, your reliable partner for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2A Screw (2x)
Graduating Pressure Range
5 - 70 PSI
Final Delivery Pressure
70 PSI
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Handle Shape
Straight
Mounting Clamp Included
Yes
Body Material
Zinc
Weight
3.37 lb
