286093

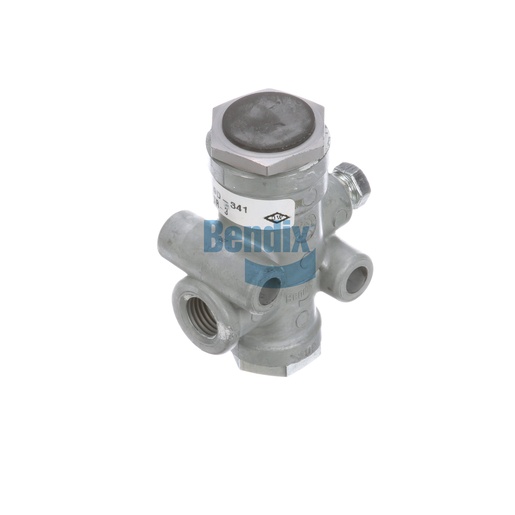

Inversion Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Inversion Valve is a crucial component for trailer braking systems, designed to ensure precise control of airflow within the brake system. This valve facilitates the effective modulation of brake pressure, enhancing the responsiveness and efficiency of the braking system. Its robust design allows it to withstand the demanding conditions typical of heavy-duty commercial vehicle operations, ensuring long-lasting reliability. By maintaining optimal pressure levels, this valve helps prevent brake lock-up and enhances overall vehicle safety during operation. With its easy installation and maintenance features, the inversion valve is an excellent choice for fleet managers looking to streamline their vehicle's braking performance. At Source One Parts Center, we are committed to providing genuine Bendix OEM parts, ensuring you receive the highest quality components that support the safe operation of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT (Plugged)
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Inlet Opening Descending Pressure (Common CON / SUP)
45 PSI
Length
49.0 mm (1.93 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
60 PSI
Height
75.4 mm (2.97 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.64 lb
