$109.95
$131.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

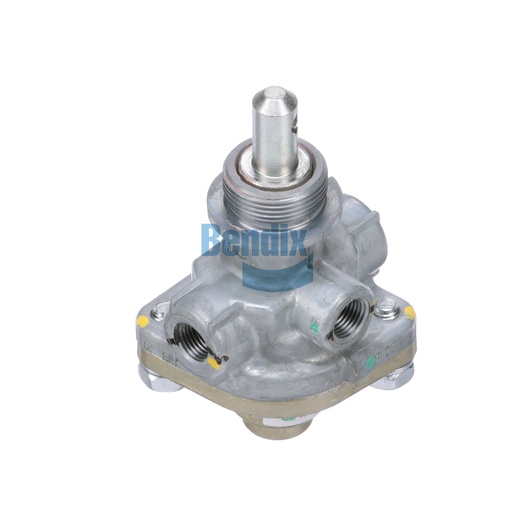

The Bendix Control Valve is a key component in managing air pressure within trailer braking systems, ensuring optimal performance and safety. This valve is designed for easy installation and operation, featuring durable construction that withstands the demands of heavy-duty use. With precise control over braking pressure, this valve helps maintain consistent braking performance, essential for safe vehicle operation. Its compatibility with various trailer systems makes it a versatile choice for fleet operators looking to enhance their braking capabilities. Regular maintenance and timely replacement of control valves are crucial for ensuring the reliability of trailer braking systems. For high-quality Bendix OEM parts, Source One Parts Center is the trusted choice for commercial vehicle solutions.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Plunger / Button Height
1.12 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.5 mm (1.99 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
90.7 mm (3.57 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.62 lb
