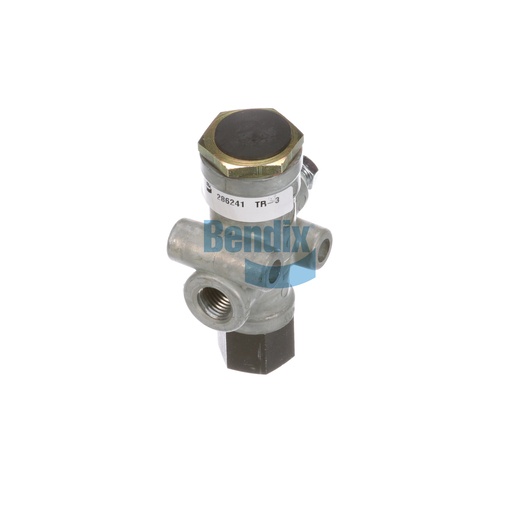

286241R
Inversion Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Inversion Valve from Bendix is crucial for managing air flow in trailer brake systems, ensuring optimal performance and safety. This valve features a compact and robust design that is capable of withstanding extreme temperatures ranging from -40 °F to 200 °F. It is engineered for reliable operation, facilitating efficient air delivery with multiple ports for enhanced responsiveness. Weighing only 0.3 kg, this valve can be easily integrated into existing systems. Regular maintenance of the inversion valve is essential to ensure the braking system operates smoothly and efficiently. Source One Parts Center is the best source for genuine Bendix OEM parts, providing high-quality solutions tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Length
49.0 mm (1.93 in)
Inlet Opening Descending Pressure (Common CON / SUP)
80 PSI
Harmonized System (HS) Code
848120
Height
88.1 mm (3.47 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
90 PSI
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.71 lb
