286749N

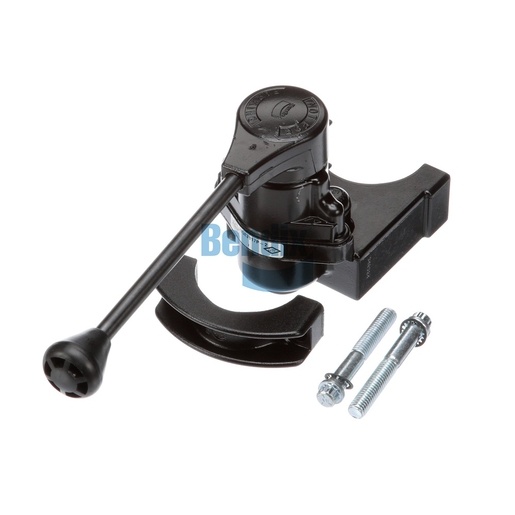

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve is essential for managing the braking system of trailers, ensuring reliable braking performance and safety on the road. This inversion valve features a robust design with a straight handle and a total handle travel of 63° - 68°, allowing for precise control over air flow. Its compatibility with 1/4-18 NPT ports makes it easy to integrate into existing systems. Engineered to operate efficiently in temperatures ranging from -40°F to 200°F, this valve is built for durability and reliability. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, offering quality products that you can trust to keep your vehicle performing at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2A Screw (2x)
Graduating Pressure Range
5 - 50 PSI
Final Delivery Pressure
50 PSI
Total Handle Travel
63° - 68°
Harmonized System (HS) Code
848120
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Handle Shape
Straight
Mounting Clamp Included
Yes
Body Material
Zinc
Weight
3.2 lb
