$319.95
$383.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

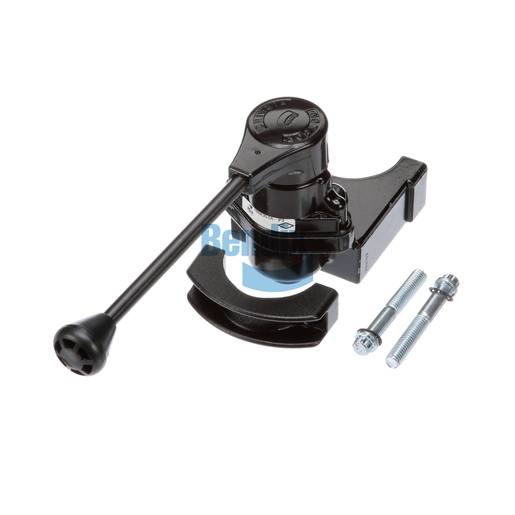

The Trailer Control Valve from Bendix is engineered to deliver exceptional performance and reliability for your towing needs. This valve is designed to manage air flow effectively, ensuring that your trailer's braking system operates seamlessly. With a robust construction that withstands harsh conditions, it offers durability and dependability in various environments. The design includes multiple ports for efficient air management, and it functions effectively within a wide temperature range, from -40 °F to 200 °F. Trust in Bendix for your braking solutions, and choose Source One Parts Center for the best selection of genuine OEM parts, ensuring your commercial vehicle runs smoothly and safely.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Height
114.0 mm (4.49 in)
Length
114.0 mm (4.49 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2A Screw (2x)
Graduating Pressure Range
5 - 80 PSI
Total Handle Travel
63° - 68°
Width
79.0 mm (3.11 in)
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Handle Shape
Straight
Mounting Clamp Included
Yes
Body Material
Zinc
Weight
3.35 lb
