286826R

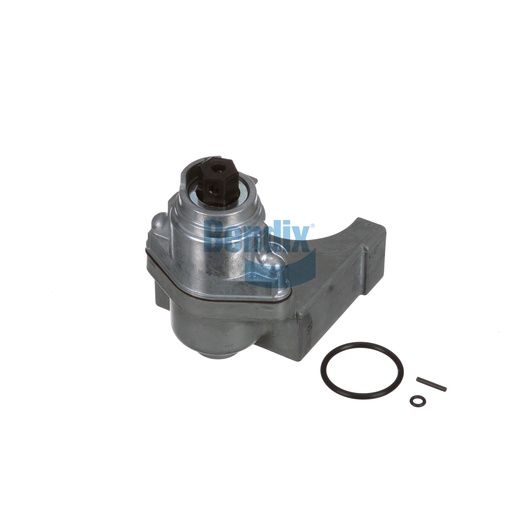

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve is an essential component that enhances your vehicle's braking system, providing precise control over the trailer's braking response. Designed with durability and reliability in mind, this valve ensures that your brakes engage smoothly, allowing for better handling and safety while on the road. Its robust construction is resistant to wear and tear, making it suitable for heavy-duty applications. This valve features an easy installation process, enabling quick maintenance for fleet operators and individual truck owners alike. By integrating this genuine Bendix part into your braking system, you enhance the overall safety and efficiency of your vehicle. For all your Bendix OEM parts, Source One Parts Center is the trusted source, delivering quality and performance for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 50 PSI
Final Delivery Pressure
50 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Product Type
Self-Return (with Detent)
Body Material
Zinc
Weight
2.43 lb
