$309.95
$371.94

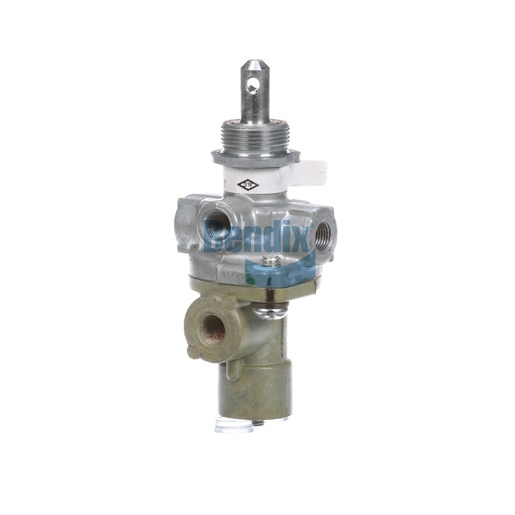

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is designed for effective control of air brake systems in trailers, ensuring optimal functionality. This valve features a robust construction that can withstand harsh operating conditions, with a maximum operating temperature of 200 °F (93 °C) and a minimum of -40 °F (-40 °C). With a net weight of just 0.4 kg (0.82 lb), it is lightweight yet durable, making it an ideal choice for heavy-duty applications. The valve's design facilitates rapid response times, which are crucial for maintaining vehicle control during braking operations. Its easy installation and compatibility with various systems make it a versatile solution for fleet operators. For high-quality Bendix parts that ensure reliability and performance, Source One Parts Center is the premier source for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
111.0 mm (4.37 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
47.0 mm (1.85 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Vent
Plunger Diameter
Ø .374 IN
Weight
0.82 lb
