287121

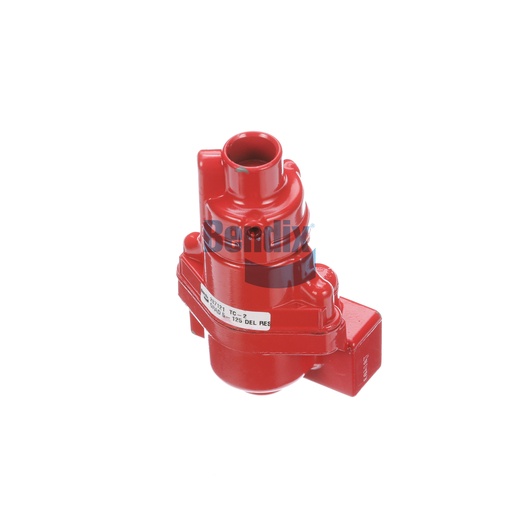

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve is an essential component for managing air brake systems in trailers, ensuring safe and efficient operation. Featuring a self-return mechanism and a durable zinc body, this valve is designed to withstand the rigors of commercial use while providing precise control over the air supply to the trailer brakes. Its innovative design allows for easy installation and maintenance, making it a go-to choice for fleet operators and mechanics alike. With a maximum operating temperature of 200°F, this valve is built for reliability, ensuring that your braking system performs optimally under various conditions. As you navigate the demands of heavy hauling, trust the Bendix Trailer Control Valve to deliver the performance you need. Source One Parts Center is your top choice for genuine Bendix OEM parts, ensuring your vehicle is equipped with the best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 125 PSI
Total Handle Travel
77°
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Final Delivery Pressure
Reservoir
Product Type
Self-Return (with Detent)
Body Material
Zinc
Weight
1.94 lb
