287195

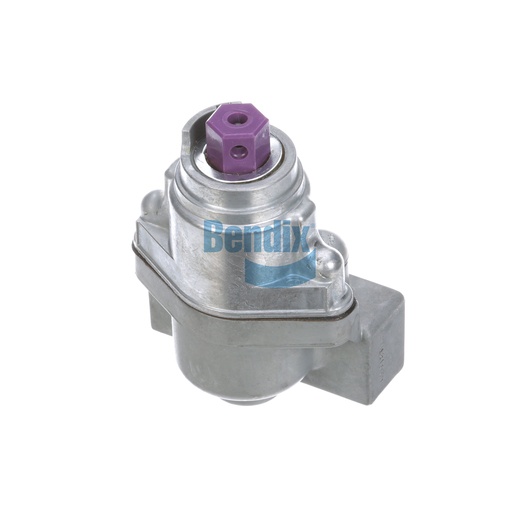

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve from Bendix is a crucial component designed to enhance braking performance in trailer systems. This valve is engineered to provide precise control over air pressure distribution, ensuring that your trailer responds effectively during braking maneuvers. Its robust design allows for durability and reliability, even in challenging conditions, making it a perfect fit for heavy-duty applications. Easy to install and maintain, this control valve enhances the overall safety and functionality of your trailer's braking system. Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring you receive high-quality components that meet the demands of the trucking industry.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 125 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Final Delivery Pressure
Reservoir
Product Type
Self-Return (with Detent)
Body Material
Zinc
Weight
1.87 lb
