287235N

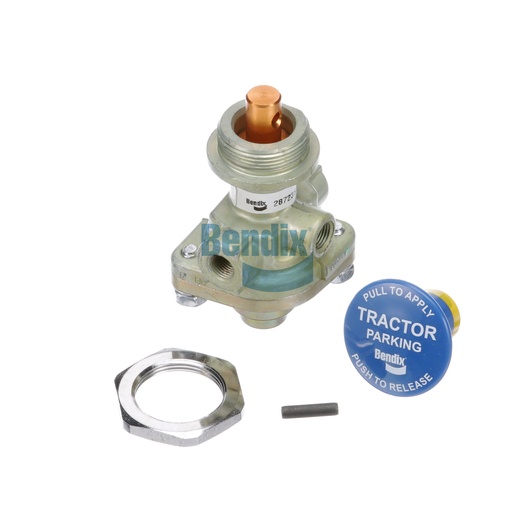

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix control valve is crucial for managing the air brake system in commercial vehicles, ensuring reliable and safe braking performance. With a robust design, this valve operates effectively in temperatures ranging from -40°F to 200°F, making it suitable for various environments. The precise engineering of its multiple ports allows for efficient control of air delivery and exhaust, enhancing the overall functionality of the braking system. Its compact size ensures easy installation, making it an ideal choice for both new builds and replacements. For high-quality Bendix OEM parts, Source One Parts Center is your trusted source for quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Mounting
1 1/8-20 UNEF-2A
Plunger / Button Height
1.12 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
50.8 mm (2.0 in)
Height
66.0 mm (2.6 in)
Harmonized System (HS) Code
848120,848180
Length
97.3 mm (3.83 in)
Button Color
Blue (Yellow Band)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Apply | Tractor Parking | Push to Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .436 IN
Weight
0.68 lb
