$194.95
$233.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

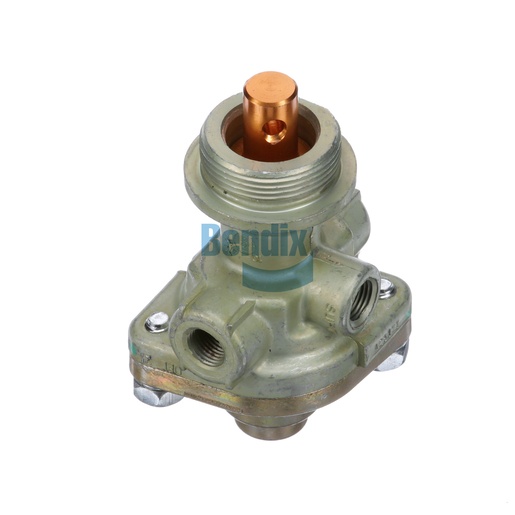

The Control Valve from Bendix is engineered to manage the air supply to your trailer's braking system, ensuring smooth and responsive braking action. This valve is designed for easy installation and features a robust construction that can withstand the rigors of commercial vehicle operations. With a maximum operating temperature of 200 °F (93 °C) and a minimum of -40 °F (-40 °C), it is built to perform reliably in diverse conditions. The control valve's precise engineering ensures accurate pressure control, which is crucial for maintaining optimal braking performance and safety on the road. Source One Parts Center is your trusted source for genuine Bendix parts, offering quality products and expert support to meet all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Mounting
1 1/8-20 UNEF-2A
Plunger / Button Height
1.12 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
50.8 mm (2.0 in)
Height
66.0 mm (2.6 in)
Harmonized System (HS) Code
848120
Length
97.3 mm (3.83 in)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .436 IN
Weight
0.75 lb
