287238R

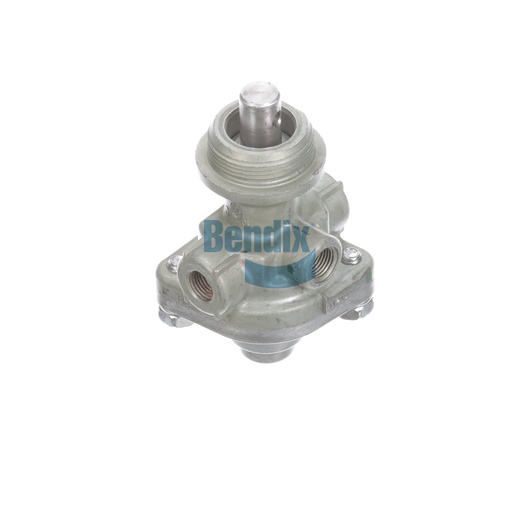

Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your vehicle's braking system with the Bendix control valve, designed for reliable performance and safety. This inversion valve effectively manages air flow and pressure, ensuring that your brakes operate smoothly under all conditions. With multiple ports and a user-friendly design, this valve is easy to install and compatible with various truck models, making it an excellent choice for fleet maintenance. Its durable construction ensures longevity and consistent performance, reducing the risk of brake failure during critical situations. Trust this control valve to enhance the efficiency of your braking system, ensuring safety on the road. Source One Parts Center offers genuine Bendix OEM parts, providing the quality and reliability you need for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Mounting
1 1/8-20 UNEF-2A
Plunger / Button Height
1.12 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
50.8 mm (2.0 in)
Height
66.0 mm (2.6 in)
Harmonized System (HS) Code
848120
Length
97.3 mm (3.83 in)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .436 IN
Weight
0.64 lb
