DESCRIPTION

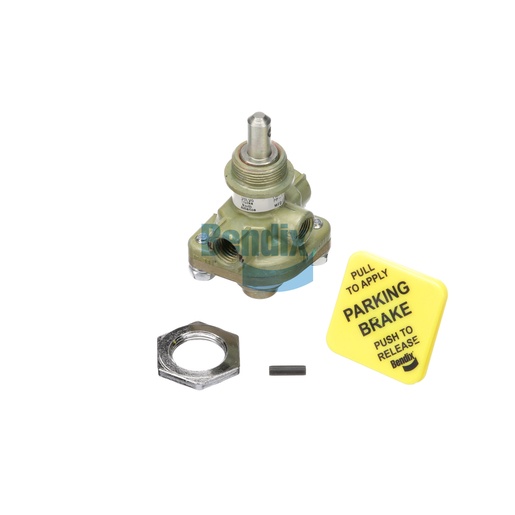

The Bendix Control Valve is an essential component for managing air pressure in trailer braking systems, providing seamless operation and enhanced safety. Designed with a robust construction, this valve is capable of handling the demanding conditions of commercial vehicle applications. Its 7/8-20 UNEF-2A mounting ensures a secure fit, while the various ports facilitate easy integration into your braking system. This control valve features a user-friendly design, allowing for quick activation and reliable control of air pressure, which is critical for smooth braking performance. With the ability to operate efficiently in a wide temperature range, it is suitable for various environmental conditions. When it comes to purchasing genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, ensuring that you receive reliable products that guarantee performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.64 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
103.9 mm (4.09 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Shape
Diamond
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Apply | Parking Brake | Push to Release
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.64 lb
