287334N

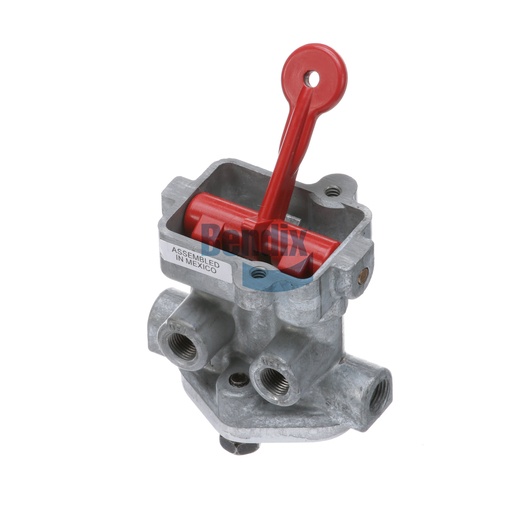

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is an essential component in the air brake systems of commercial vehicles, specifically designed for inversion applications. With a weight of just 0.79 lbs, this valve is lightweight yet built to withstand the demands of heavy-duty use. Its precision engineering allows for accurate control of air flow, ensuring that your braking system operates smoothly and efficiently. This valve is designed to provide reliable performance in varying conditions, making it a vital part of any air brake system. Regular maintenance and timely replacement are critical for maintaining optimal brake function. For your needs of genuine Bendix OEM parts, Source One Parts Center is your trusted source, ensuring you receive high-quality components that enhance the safety and performance of your vehicle.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 1
1/8-27 NPT
Supply Port 2
1/8-27 NPT
Height
114.6 mm (4.51 in)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Length
54.1 mm (2.13 in)
Width
69.1 mm (2.72 in)
Total Travel
75°
Harmonized System (HS) Code
848120
Supply Port 3
Closed Port
Supply Port 4
Closed Port
Lever Position 3
DEL 1 / DEL 2
Lever Position 1
EXH 1 / EXH 2
Actuator Style
Flipper
Country of Origin
Mexico
Lever Position 2
Neutral Position
Actuator Material
Nylon
Mechanism Type
Positioning
Actuator Finish
Red
Exhaust Port
Vent
Weight
0.79 lb
