287379N

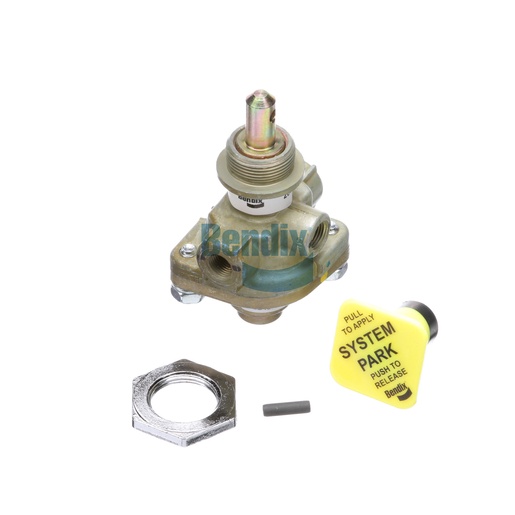

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is a critical component in your truck's braking system, specifically designed to manage air pressure for optimal brake performance. This valve features a robust construction and is built to operate efficiently under high temperatures, ensuring reliable functionality in all driving conditions. Weighing just 0.3 kg, its compact design allows for easy installation, while its advanced pressure control capabilities enhance the responsiveness of your braking system. The Control Valve plays a crucial role in ensuring that air is effectively distributed to each brake component, providing smooth and reliable braking action. For those seeking high-quality Bendix parts, Source One Parts Center is the best place to find genuine OEM components that deliver exceptional performance and dependability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Shape
Diamond
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Apply | System Park | Push to Release
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.66 lb
