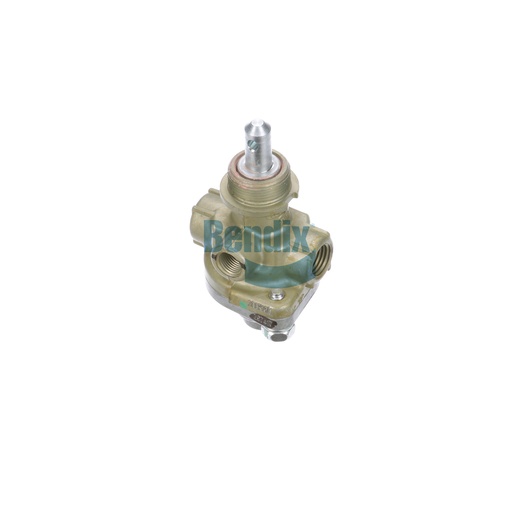

287417R
Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is engineered for precision and reliability in managing air flow within trailer braking systems. This versatile valve features a plunger actuator style and is designed to operate effectively in a range of temperatures from -40 °F to 200 °F. With an adjustable design, it allows for precise control over air pressure, contributing significantly to the overall performance of your braking system. Weighing only 0.64 lbs, this valve is lightweight and straightforward to install, ensuring minimal downtime during maintenance. The Bendix Control Valve enhances safety and responsiveness in your commercial vehicle’s braking system. Source One Parts Center is the best place for genuine Bendix OEM parts, ensuring you equip your fleet with the highest quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
30 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.7 mm (3.61 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.64 lb
