287418R

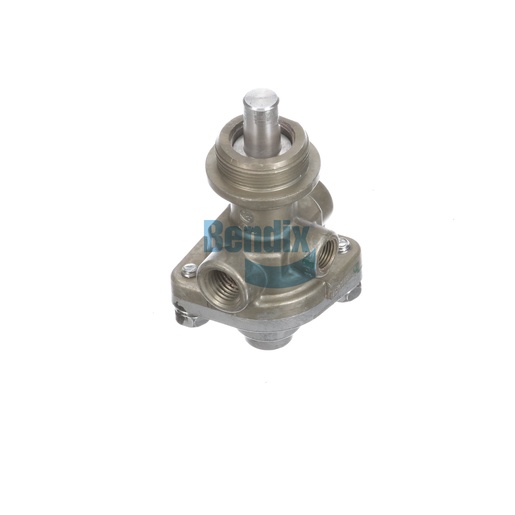

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a critical component designed to enhance the efficiency of air management in your trailer's braking system. This 2-position valve is built to provide precise control over air supply, ensuring reliable operation under various conditions. Engineered with durability in mind, it features a nylon actuator that withstands extreme temperatures and demands of heavy-duty use. This valve facilitates quick and easy installation, making it an ideal choice for maintenance and repairs. For high-quality, genuine Bendix components, Source One Parts Center is your trusted partner, delivering OEM parts that ensure your commercial vehicles perform optimally.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Mounting
1 1/8-20 UNEF-2A
Plunger / Button Height
1.12 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
50.8 mm (2.0 in)
Height
66.0 mm (2.6 in)
Harmonized System (HS) Code
848120
Length
97.3 mm (3.83 in)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .436 IN
Weight
0.68 lb
