$82.95
$99.54
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

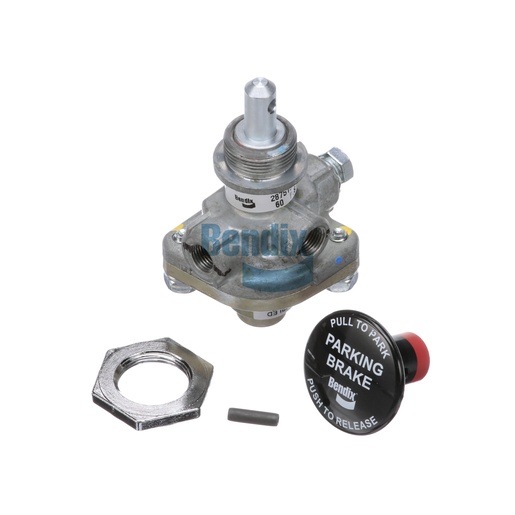

The Control Valve from Bendix is a critical component for regulating air flow within your vehicle's braking system. This valve is designed for reliability, ensuring that air is distributed efficiently to various brake circuits, which is essential for optimal braking performance. With a compact design and a robust build, it can withstand the demands of commercial applications while providing consistent operation. The valve's straightforward installation process makes it accessible for quick replacements, minimizing downtime for your fleet. For genuine Bendix parts, Source One Parts Center is the premier choice, offering authentic OEM components that guarantee quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Automatic Release Pressure
60 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Park | Parking Brake | Push to Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.66 lb
