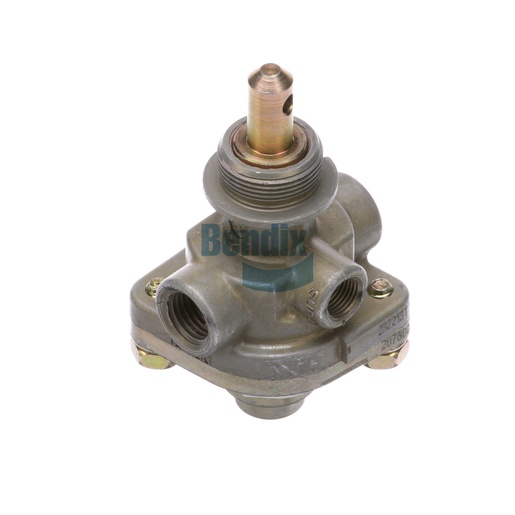

287600R
Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is an essential part for managing air flow within the braking systems of trailers, ensuring effective performance and safety. This valve is designed with precision to provide reliable control over air pressure, directly influencing the responsiveness of the braking system. Featuring a lightweight design of 0.3 kg, it is easy to install and maintain, making it an ideal choice for both fleet operators and mechanics. The robust construction ensures durability and efficiency, allowing it to perform under various environmental conditions. This control valve is crucial for maintaining optimal braking performance, thereby enhancing safety on the road. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your top choice, guaranteeing high-quality components tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.7 mm (3.61 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.57 lb
