$90.95
$109.14

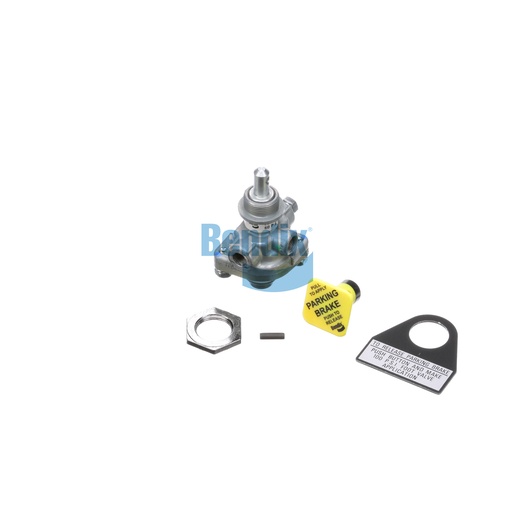

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is essential for regulating the air pressure in trailer brake systems, ensuring smooth and efficient operation. This valve is designed with durability in mind, featuring robust construction that can withstand challenging conditions. Its compact design simplifies installation while ensuring reliable performance under varying loads. With a net weight of just 0.3 kg, this control valve can be easily integrated into existing systems without hassle. For high-quality, reliable components, Source One Parts Center is the best place to find genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
56.6 mm (2.23 in)
Automatic Release Pressure
60 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Shape
Diamond
Country of Origin
Mexico
Rubber Boot Included
No
Button Text
Pull to Apply | Parking Brake | Push to Release
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Dial Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.71 lb
