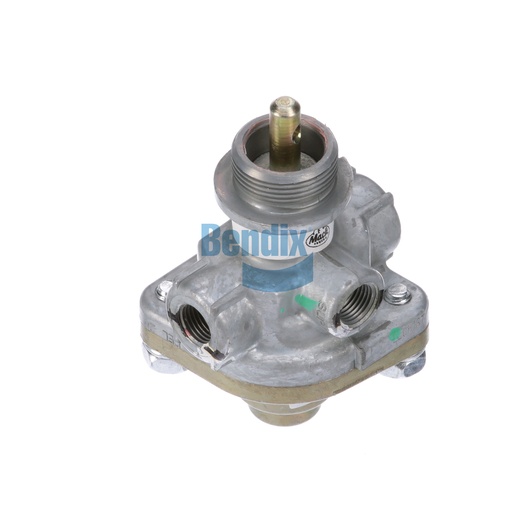

287637N
Control Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$73.95
$88.74
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is a vital component in the Bendix braking system, providing essential control for the effective operation of air brakes in heavy-duty vehicles. Engineered for reliability, this valve features a robust design that can handle high-pressure environments while ensuring precise modulation of air flow. It's designed with user-friendly features for easy installation and maintenance, making it ideal for fleet operators. With a compact weight of 0.57 lbs, it integrates seamlessly into your braking system without adding unnecessary bulk. This control valve meets all OEM specifications, ensuring it operates reliably under various conditions. Source One Parts Center is your best source for genuine Bendix OEM parts, guaranteeing the quality and performance essential for safe vehicle operation.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.7 mm (3.61 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .250 IN
Weight
0.57 lb
