287791

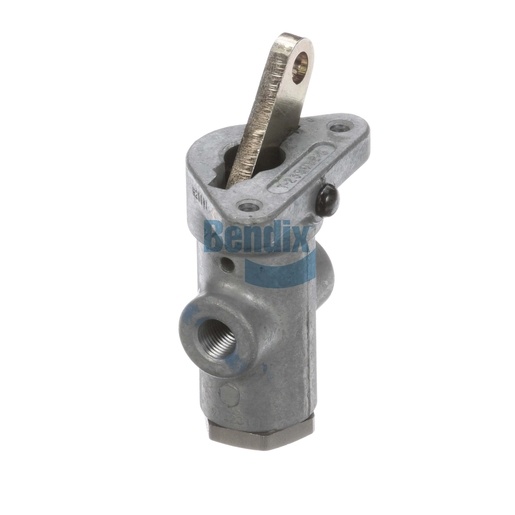

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve by Bendix is a critical component for the effective operation of trailer braking systems. This versatile valve features a flipper actuator style that allows for precise control of air flow, ensuring optimal performance during braking. With a compact design measuring 50.8 mm in length and a net weight of just 0.2 kg (0.53 lb), this valve is engineered for easy integration into various braking applications. It operates effectively within a temperature range of -40°F to 200°F, making it suitable for a wide range of environmental conditions. The valve's user-friendly design simplifies installation and maintenance, while its durable materials ensure long-lasting performance and reliability. This product plays a vital role in enhancing the safety and efficiency of your vehicle's braking system. When sourcing Bendix OEM parts, Source One Parts Center is your top choice, offering genuine products that guarantee quality and dependability.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Cautionary Note(s)
27.5° Dead Band (Valve Closed)
Width
33.5 mm (1.32 in)
Length
50.8 mm (2.0 in)
Total Travel
75°
Height
83.8 mm (3.3 in)
Harmonized System (HS) Code
848120
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Actuator Material
Steel
Exhaust Port
Vent
Actuator Finish
Zinc-Plated
Weight
0.53 lb
