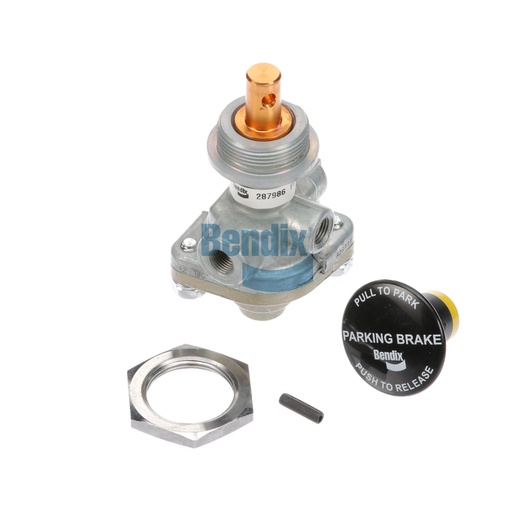

287986N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is essential for managing the braking system of your commercial vehicle, ensuring safety and performance. This valve regulates the air flow and pressure to the brakes, allowing for precise control during operation. Its robust construction guarantees durability and reliability, even under extreme conditions ranging from -40°F to 200°F. The design includes user-friendly features such as a black button for reservoir drainage, making maintenance straightforward. This control valve is engineered for seamless installation, fitting perfectly into existing systems for quick upgrades or replacements. By ensuring optimal braking performance, it enhances the safety of both the vehicle and its cargo. For those seeking genuine Bendix components, Source One Parts Center offers the best selection of OEM parts that ensure your commercial vehicle runs efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Mounting
1 1/8-20 UNEF-2A
Plunger / Button Height
1.12 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
50.8 mm (2.0 in)
Height
66.0 mm (2.6 in)
Harmonized System (HS) Code
848120
Length
97.3 mm (3.83 in)
Button Color
Black (Yellow Band)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Park | Parking Brake | Push to Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .436 IN
Weight
0.64 lb
