DESCRIPTION

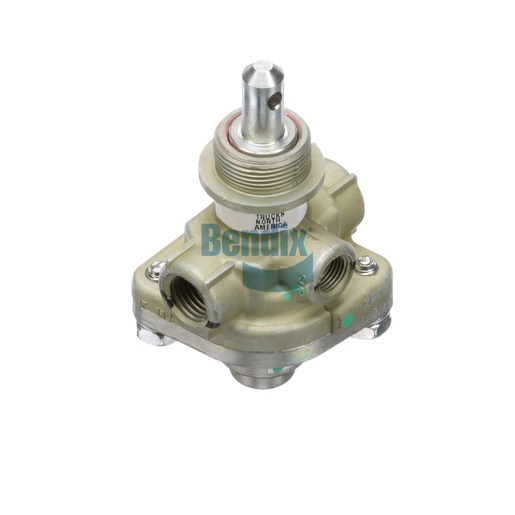

The Bendix Control Valve is an essential part of your vehicle's braking system, particularly in managing the flow of air to the brakes. This valve is designed to ensure smooth and effective braking, helping to maintain optimum performance in various driving conditions. Its compact design and lightweight nature, at just 0.3 kg, make it easy to install while providing reliable performance. By choosing genuine Bendix OEM parts like this control valve, you ensure that your vehicle operates efficiently and safely. For a diverse selection of quality Bendix parts, Source One Parts Center stands out as the best choice, offering everything you need for your commercial vehicle's maintenance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
30 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
90.7 mm (3.57 in)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.57 lb
