288006

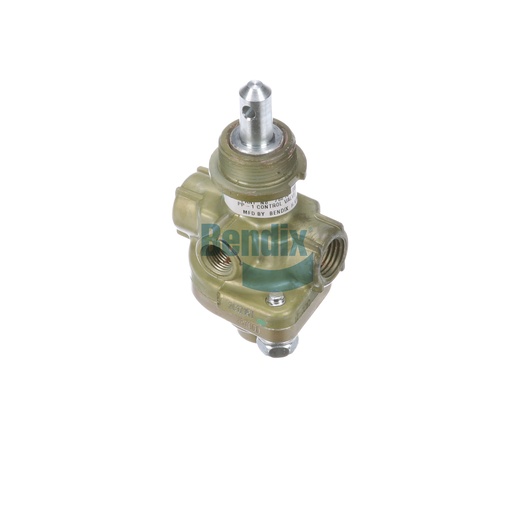

Control Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$81.95
$98.34
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is engineered for efficient air management in trailer systems, providing precise control over the air supply for braking applications. This robust 2-position valve features a durable design that ensures reliable performance, making it a crucial component in maintaining the safety and functionality of your vehicle. With easy installation and compatibility across various systems, this valve is ideal for commercial applications that demand high performance. The Bendix Control Valve is built to withstand extreme temperatures and pressures, ensuring long-lasting service. For those seeking genuine Bendix parts, Source One Parts Center is the best choice for reliable OEM quality that enhances the performance of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
90.7 mm (3.57 in)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.57 lb
