288276

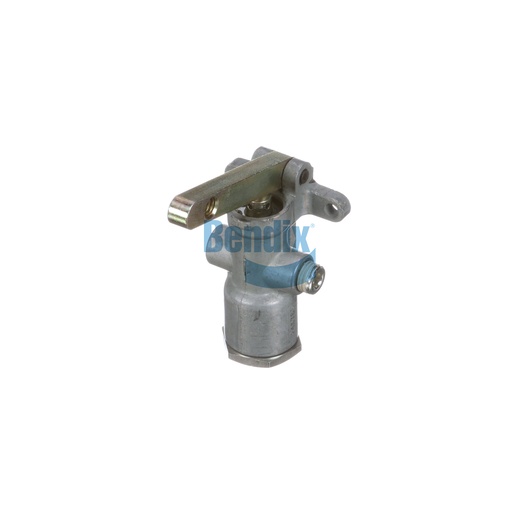

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a critical component for managing your vehicle's braking system, especially when it comes to trailer valves. This robust and reliable inversion valve features a two-position design that allows for precise control of air flow and pressure, optimizing braking performance. With a net weight of just 0.3 kg, this valve is built for durability, ensuring long-lasting operation under demanding conditions. Its compact size facilitates easy installation and integration into existing systems. By choosing the Bendix Control Valve, you can trust that your braking system will function efficiently, providing safety and responsiveness on the road. For sourcing genuine Bendix parts, Source One Parts Center stands as the best choice for quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Total Travel
.620 IN
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Delivery Port 2
1/4-18 NPT (Plugged)
Height
103.9 mm (4.09 in)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
60.5 mm (2.38 in)
Harmonized System (HS) Code
848120
Length
88.9 mm (3.5 in)
Actuator Style
Lever/Linkage
Country of Origin
Mexico
Mechanism Type
Self-Return
Actuator Material
Steel
Exhaust Port
Vent
Actuator Finish
Zinc-Plated
Mounting
Ø .28 IN (2x)
Weight
0.66 lb
