288374N

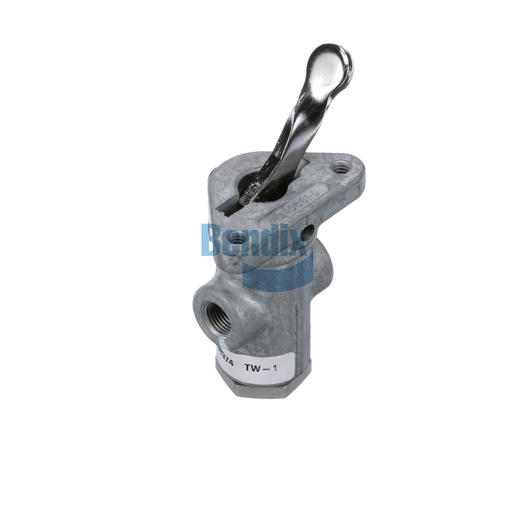

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is designed for efficient operation in trailer braking systems, providing seamless management of air pressure. Crafted with a robust design, this valve is built to withstand the demanding conditions of commercial vehicle applications. With its precise mounting and multiple ports for air delivery, it allows for effective air management, enhancing overall braking performance. The valve operates efficiently across a broad temperature range, making it suitable for various environmental conditions. When you choose to purchase genuine Bendix OEM parts, Source One Parts Center offers the best selection to keep your vehicle running smoothly and safely.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Supply Port
1/8-27 NPT
Delivery Port 2
1/8-27 NPT (Plugged)
Product Type
2-Position Valve (Reverse Lever)
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Actuator Finish
Chrome-Plated
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Actuator Material
Steel
Exhaust Port
Vent
Weight
0.49 lb
