288586N

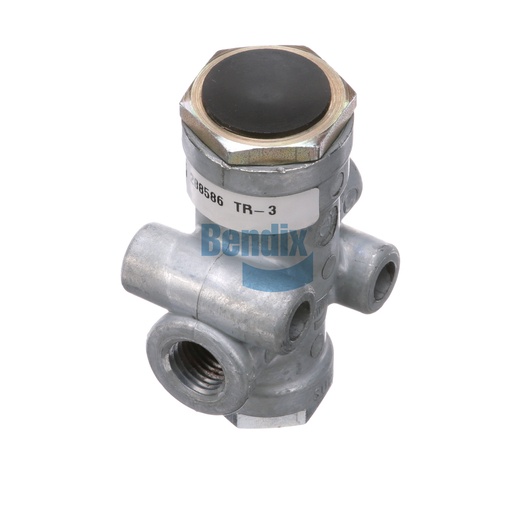

Inversion Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix inversion valve is engineered to provide precise control of air flow within the brake system, ensuring optimal performance in various braking conditions. This compact valve features a robust construction designed for durability in harsh environments. With a maximum operating temperature of 200°F and a minimum of -40°F, it ensures reliable operation under extreme weather conditions. It boasts a unique design that allows for easy installation, reducing maintenance time and effort. The valve is equipped with multiple ports, accommodating various configurations to suit different vehicle requirements. This inversion valve is essential for maintaining consistent brake pressure, ultimately enhancing safety on the road. When you choose Source One Parts Center for your Bendix OEM parts, you can be confident in receiving authentic products that guarantee reliability and performance in your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Length
49.0 mm (1.93 in)
Inlet Opening Pressure (Constant SUP / Variable CON)
65 PSI
Inlet Opening Descending Pressure (Common CON / SUP)
75 PSI
Height
75.4 mm (2.97 in)
Harmonized System (HS) Code
848120
Exhaust Opening Ascending Pressure (Common CON / SUP)
90 PSI
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.62 lb
