289034N

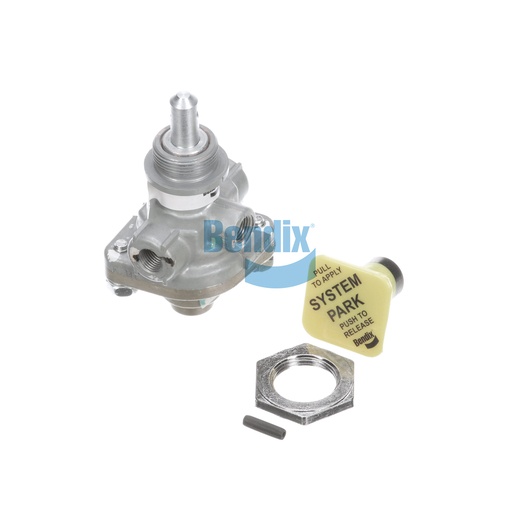

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Improve your trailer's braking reliability with the Bendix Control Valve, engineered for superior performance in air brake systems. This inversion valve features a sturdy design with a 7/8-20 UNEF-2A mounting and a user-friendly actuator that ensures easy operation. Its construction allows for efficient air flow, enabling quick responsiveness to brake commands, which is critical in heavy-duty applications. Capable of operating between -40°F and 200°F, it provides consistent performance across a range of temperatures, ensuring safety and reliability. Designed with attention to detail, this control valve is vital for maintaining optimal braking performance in various conditions. For authentic Bendix OEM parts that you can depend on, Source One Parts Center is your trusted partner in commercial vehicle maintenance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Automatic Release Pressure
20 PSI
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Shape
Diamond
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Apply | System Park | Push to Release
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.66 lb
