289288N

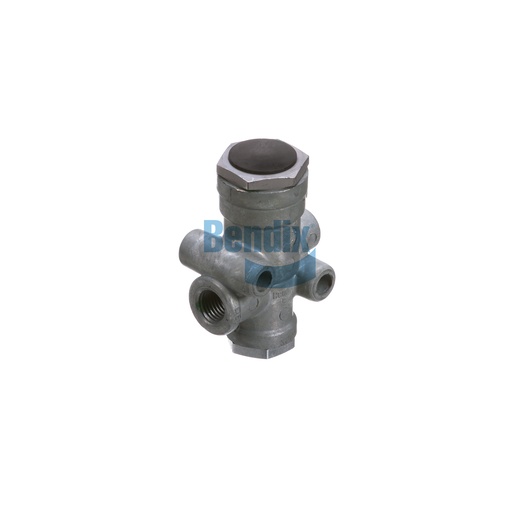

Inversion Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Inversion Valve from Bendix is a critical component designed for efficient operation in your vehicle's braking system. This valve expertly regulates air flow, ensuring that the air pressure is appropriately managed for optimal brake performance. Weighing just 0.3 kg, it is lightweight yet robust, making it suitable for various commercial vehicle applications. The inversion valve’s precise engineering allows for quick response times, enhancing the safety and effectiveness of your braking system. By maintaining proper air pressure, this valve helps prevent potential brake failure, ensuring the reliability of your vehicle on the road. Choosing the Bendix Inversion Valve means investing in the integrity and performance of your braking system. Source One Parts Center is the best choice for purchasing genuine Bendix OEM parts, ensuring you receive high-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Pressure (Constant SUP / Variable CON)
25 PSI
Width
35.1 mm (1.38 in)
Inlet Opening Descending Pressure (Common CON / SUP)
42 PSI
Length
49.0 mm (1.93 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
52 PSI
Height
75.4 mm (2.97 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.55 lb
