289295N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

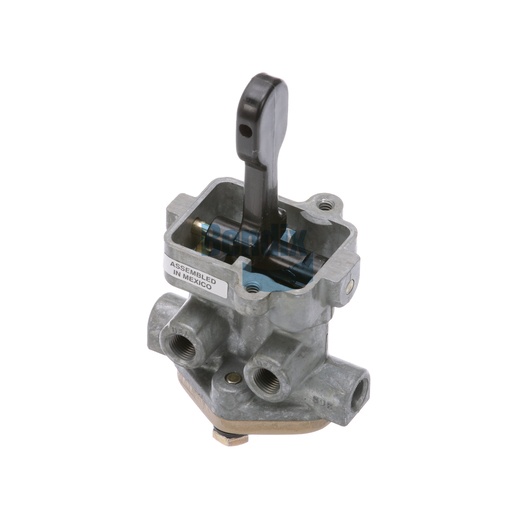

The Bendix Control Valve is designed specifically for trailer applications, providing reliable air flow control for efficient braking performance. This valve features a sturdy construction with a total travel of 100° and is equipped with a flipper actuator for easy operation. With its durable design, it can withstand a wide range of temperatures, from -40°F to 200°F, ensuring consistent performance in various conditions. The valve's compact size makes it easy to install, while its effective operation improves overall vehicle safety. For authentic Bendix OEM parts that guarantee quality and performance, Source One Parts Center is your trusted partner.
SPECIFICATIONS
Mounting
#10-24 UNC-3B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port 1
1/8-27 NPT
Supply Port 2
1/8-27 NPT
Total Travel
100°
Height
125.0 mm (4.92 in)
Maximum Operating Temperature
200 °F (93 °C)
Product Type
3-Position Valve (Z-Shift)
Length
54.1 mm (2.13 in)
Width
69.1 mm (2.72 in)
Harmonized System (HS) Code
848120
Actuator Finish
Black
Supply Port 3
Closed Port
Supply Port 4
Closed Port
Lever Position 1
DEL 1 / DEL 2
Lever Position 3
DEL 1 / EXH 2
Lever Position 2
EXH 1 / EXH 2
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.86 lb
