289543

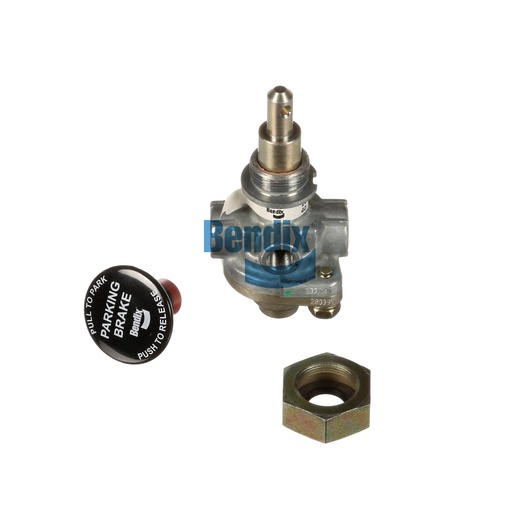

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is a vital part of your vehicle's air brake system, providing essential control over braking functions. This valve features a compact design with precise dimensions, allowing for seamless integration into your braking system. With an automatic release pressure of 40 PSI, it ensures optimal performance while minimizing the risk of brake lock-up. The valve is built to endure a wide temperature range, from -40°F to 200°F, making it suitable for various environments and conditions. Additionally, its lightweight design, at just 0.3 kg, facilitates easy installation and maintenance, ensuring your vehicle remains in peak operational condition. This Control Valve is perfect for both tractors and trailers, providing reliability where it matters most. Choose Source One Parts Center for all your Bendix OEM needs, where you can find top-quality parts tailored for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
115.3 mm (4.54 in)
Plunger / Button Height
2.09 IN
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Park | Parking Brake | Push to Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.75 lb
