289862N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

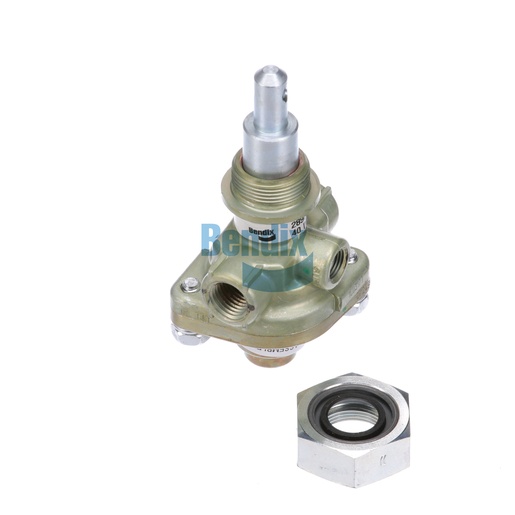

The Bendix Control Valve is an essential component designed for efficient management of air pressure in trailer braking systems. Engineered for heavy-duty applications, this valve ensures precise control, enabling smoother braking and enhanced safety during operation. Its robust design allows it to withstand harsh conditions while maintaining performance, making it a reliable choice for fleet operators. With a straightforward installation process, this control valve simplifies maintenance and replacement, ensuring that your braking system remains in top condition. Regularly inspecting and replacing control valves is vital for optimal braking performance. Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring that your commercial vehicles operate safely and reliably.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.62 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
103.4 mm (4.07 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Rubber Boot Included
No
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.71 lb
