$419.95
$503.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

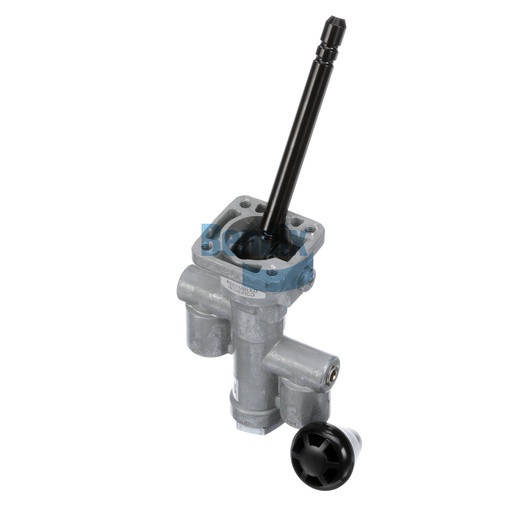

The Trailer Control Valve is an essential component for any commercial truck, designed to ensure effective and reliable control of trailer brakes. Engineered with precision, this valve provides precise pressure regulation and allows for smooth and efficient braking operations under various load conditions. Its robust construction, featuring a zinc body and aluminum handle, ensures durability and longevity, even in the most demanding environments. The valve's total handle travel of 75 degrees offers users a comfortable range of motion for easy operation, while its straightforward dash mounting simplifies installation. With a maximum operating temperature of 200°F and a minimum of -40°F, it performs reliably across a wide temperature range. This valve is crucial for maintaining safety and performance in your braking system, ensuring that your trailer responds accurately to your commands. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your go-to destination, providing you with authentic products that guarantee optimal performance and reliability.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (4x)
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 120 PSI
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Height
103.0 mm (4.06 in)
Final Delivery Pressure
120 PSI
Length
186.0 mm (7.32 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
73.0 mm (2.87 in)
Total Handle Travel
75°
Harmonized System (HS) Code
848120
Knob / Handle Text
Handle Material
Aluminum (Black Epoxy / Laquer)
Knob / Handle Color
Black
Mounting Location
Dash Mount
Country of Origin
Mexico
Product Type
Positioning
Handle Shape
Straight
Body Material
Zinc
Weight
0.9 lb
