$87.95
$105.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

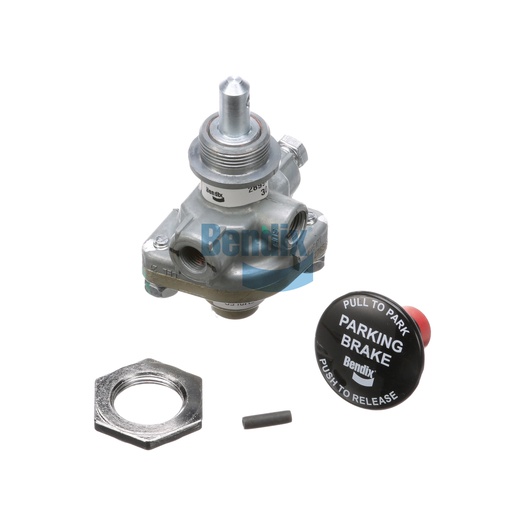

The Control Valve from Bendix is an indispensable part of your air brake system, ensuring that your braking operations are smooth and efficient. Designed for both trailers and tractors, this valve features a sophisticated mechanism that allows for precise control of air flow, contributing to enhanced braking performance. With an automatic release pressure of 30 PSI, it prevents brake lock-up and ensures safety during operation. The compact design and lightweight construction make installation straightforward, while the robust materials used guarantee durability across a range of temperatures, from -40°F to 200°F. Whether you're managing a fleet or maintaining a single vehicle, this Control Valve is a reliable choice for your braking needs. Choose Source One Parts Center, the best place for genuine Bendix OEM parts, to ensure your vehicles operate at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
30 PSI
Height
45.7 mm (1.8 in)
Width
56.6 mm (2.23 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Park | Parking Brake | Push to Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.68 lb
