5001076

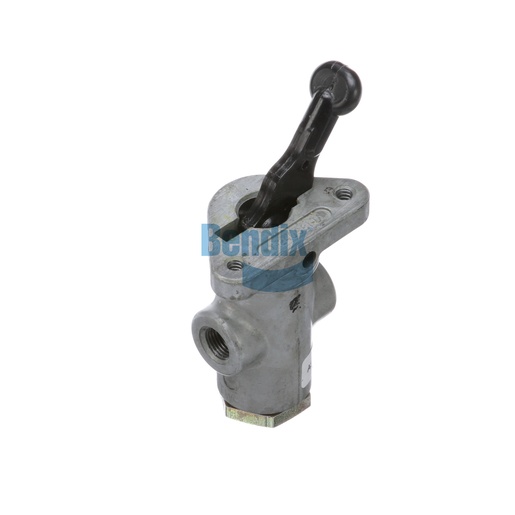

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is a crucial component in the braking system of commercial vehicles, designed to ensure efficient and reliable operation. This valve facilitates the precise management of air flow, allowing for the effective control of braking pressure and performance. Its innovative design features a reverse lever for easy operation, making it user-friendly for drivers and technicians alike. With a maximum operating temperature of 200°F and a minimum of -40°F, this valve is engineered to withstand extreme conditions, ensuring durability and longevity in demanding environments. Regular maintenance and timely replacement of the control valve are essential for maintaining optimal braking performance and vehicle safety. When it comes to sourcing high-quality components, Source One Parts Center is your trusted partner for genuine Bendix OEM parts, ensuring your vehicles are equipped with the best possible components.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve (Reverse Lever)
Maximum Operating Temperature
200 °F (93 °C)
Width
33.5 mm (1.32 in)
Length
54.1 mm (2.13 in)
Total Travel
75°
Harmonized System (HS) Code
848120
Height
94.5 mm (3.72 in)
Actuator Finish
Black
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.46 lb
