5004909

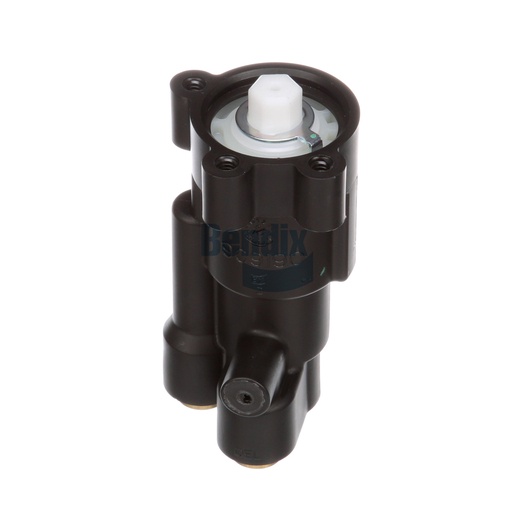

Trailer Control Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$339.95
$407.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve is a critical component in your vehicle's braking system, designed to ensure precise control of air pressure to the trailer brakes. With a lightweight design of just 0.3 kg, this valve features a plastic body that provides durability while minimizing overall weight, enhancing vehicle efficiency. The valve is engineered to deliver reliable performance under various conditions, with a maximum operating temperature of 200 °F and a graduating pressure range of 5 to 80 PSI. It is essential for maintaining proper braking response, which is crucial for safety during transport. Furthermore, its straightforward installation process allows for quick replacements, minimizing downtime. When purchasing genuine Bendix OEM parts, Source One Parts Center is your best resource for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight)
Exhaust Port
3/8 PTC (Straight)
Supply Port
3/8 PTC (Straight)
Graduating Pressure Range
5 - 80 PSI
Total Cam Follower Travel
50° CW
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Body Material
Plastic
Product Type
Positioning
Weight
0.65 lb
