5007414N

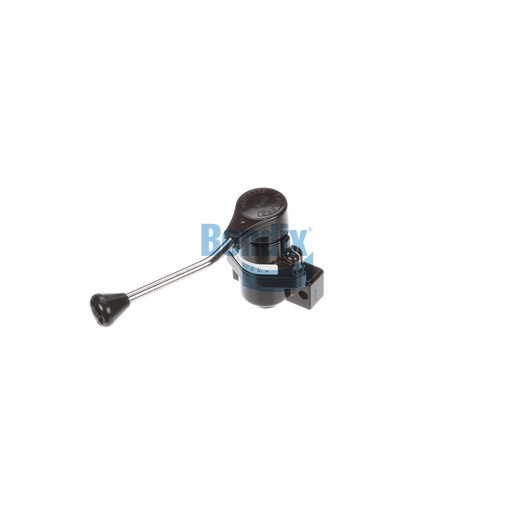

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve is a critical component of your vehicle’s air brake system, designed to enhance the functionality and safety of trailer braking. This valve allows for precise control of air flow, ensuring that your trailer's brakes respond effectively to your vehicle's braking commands. Weighing 1.3 kg, this valve is built to withstand the rigors of heavy-duty applications, ensuring reliability and performance over time. Its robust construction and easy installation make it a valuable addition to any commercial vehicle. By integrating this control valve into your braking system, you can significantly improve safety and performance while reducing the risk of failure. Source One Parts Center is your trusted source for genuine Bendix OEM parts, delivering exceptional quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 80 PSI
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Knob / Handle Text
Handle Shape
Angled
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Body Material
Zinc
Weight
2.91 lb
