$279.95
$335.94
FINAL SALE. No returns or exchanges.

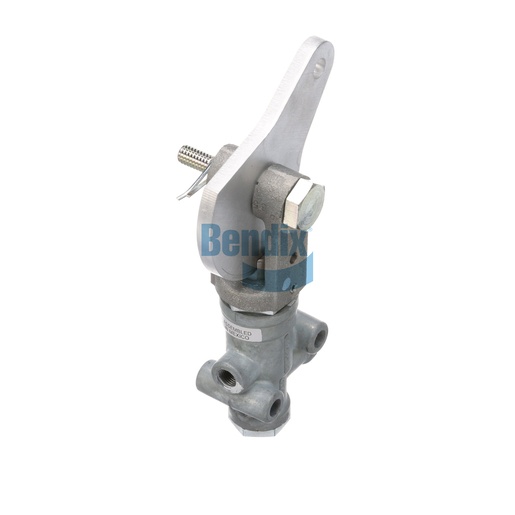

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is an advanced component that plays a vital role in the braking system of commercial vehicles. This valve features a 2-position design, allowing for precise control of air flow within the braking system, which is critical for safe and efficient operation. With its durable construction and compatibility with various applications, this control valve enhances the reliability of your vehicle's braking system. It is designed to perform effectively under a wide range of temperatures, ensuring reliable operation in varying environmental conditions. This control valve not only optimizes braking performance but also contributes to the overall safety of the vehicle. For purchasing genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and service meet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-003-060: Valve - Parking Brake, Remote
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Height
167.6 mm (6.6 in)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120
Length
86.9 mm (3.42 in)
Actuator Material
Aluminum
Actuator Style
Cam
Country of Origin
Mexico
Cam Offset
No Offset
Mechanism Type
Positioning
Actuator Finish
Trivalent Chromate
Mounting
Ø .28 IN (2x)
Cam Connection Hole Size
Ø .330 IN
Weight
1.26 lb
