800062

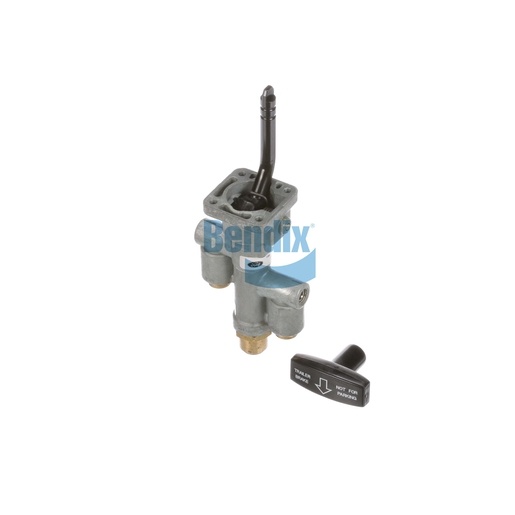

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your vehicle's braking performance with the Bendix Trailer Control Valve. This valve is specifically designed for air brake systems, providing excellent control and responsiveness when engaging the brakes. Its durable construction ensures reliability under demanding conditions, while the angled handle design offers ease of use for drivers. With a maximum operating temperature of 200°F, this valve is built to withstand extreme conditions, making it ideal for heavy-duty applications. The Trailer Control Valve is essential for maintaining effective braking performance and safety. By choosing Source One Parts Center, you guarantee that you are getting genuine Bendix OEM parts, which are integral to your vehicle's braking system.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (4x)
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 85 PSI
VMRS
013-010-014: Hand Control Valve - Air
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port
3/8 PTC (Straight)
Exhaust Port
3/8 PTC (Straight)
Supply Port
3/8 PTC (Straight)
Total Handle Travel
55°
Harmonized System (HS) Code
848120
Final Delivery Pressure
85 ± 10 PSI
Handle Material
Aluminum (Black Epoxy / Laquer)
Handle Shape
Angled
Knob / Handle Color
Black
Mounting Location
Dash Mount
Country of Origin
Mexico
Product Type
Self-Return (without Detent)
Knob / Handle Text
Trailer Brake | Not for Parking
Body Material
Zinc
Weight
1.26 lb
