800172

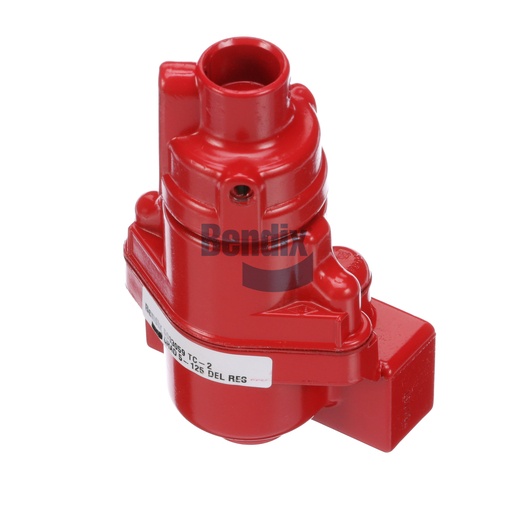

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve is designed to provide precise control over trailer brake systems, enhancing safety and performance for commercial vehicles. This inversion valve is engineered for reliability, allowing for smooth and efficient operation of air brakes. Its compact design, featuring a net weight of 1.0 kg (2.18 lb), ensures it can be easily integrated into various trailer configurations. The valve's robust construction withstands harsh conditions, making it a dependable choice for fleet operators. With its ability to enhance braking control and responsiveness, it is an essential component for maintaining safety standards in heavy-duty applications. Source One Parts Center is the ideal destination for sourcing genuine Bendix OEM parts, ensuring your commercial vehicles operate at their best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 125 PSI
Total Handle Travel
77°
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Final Delivery Pressure
Reservoir
Product Type
Self-Return (with Detent)
Body Material
Zinc
Weight
2.18 lb
